MOZA AB9 Base Support

Product Overview

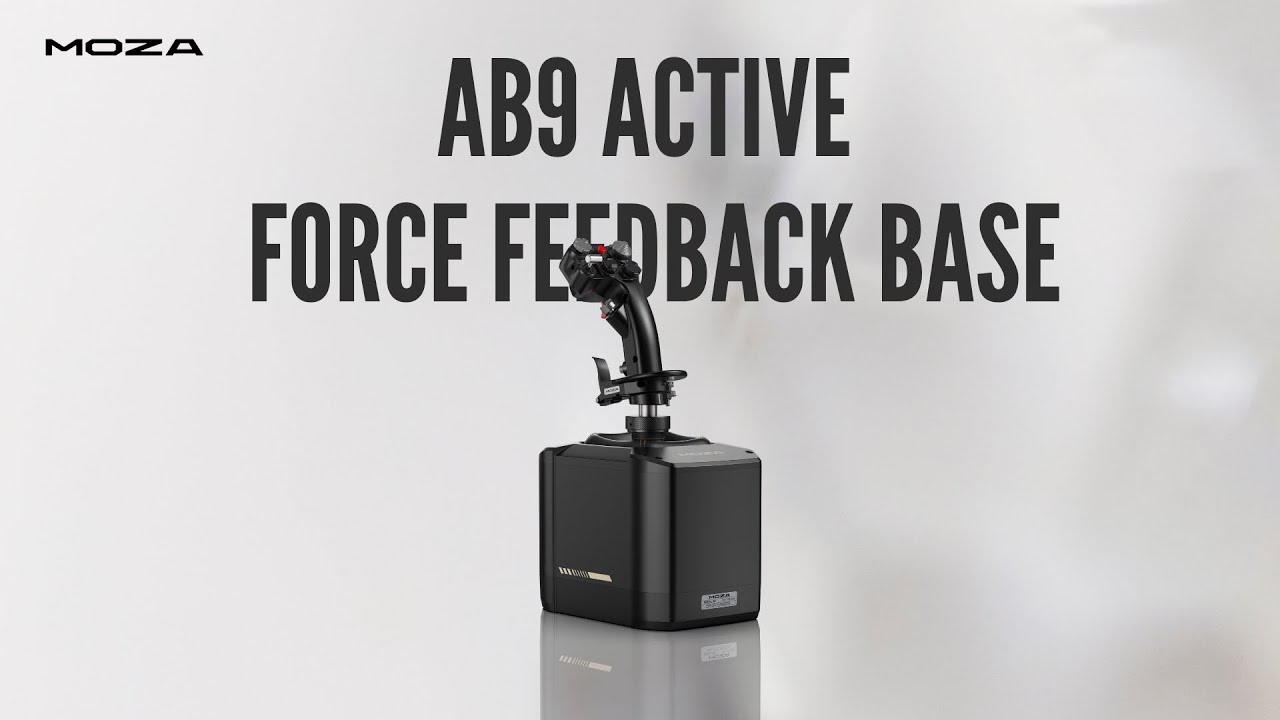

The MOZA AB9 is a 12 N·m dual-motor force feedback flight base built on aviation-grade aluminum alloy. Its MCLS (MOZA Control Loading System) technology, segmented-winding servo motors, and fanless sealed design deliver ultra-low cogging torque and near-silent operation. Compatible with the MOZA MH16 Flightstick, MHG Flightstick, MA3X Side Stick, and select third-party grips via adapters, the AB9 also supports the Active Shifter Knob for gear-based force feedback. The open-ecosystem design and universal mounting pattern make it a versatile centerpiece for any flight cockpit.

12 N·m dual-motor FFB | MCLS technology | ±20° range | Fanless sealed design | PC only

Get Started

MOZA Cockpit
All-in-one control software

User Manual
Product features and guides

Accessories
Compatible accessories

Specifications

Specification	Details
	Performance
Motor Type	Dual servo motors with segmented winding
Peak Torque	12 N·m
Force Feedback	MCLS (MOZA Control Loading System) — proprietary
Max Pitch Angle	±20° (adjustable)
Rated Power	216W
Rated Current	6A
Input Voltage	110V–220V AC → 36V DC
USB Refresh Rate	1000Hz
	Build & Design
Main Body Material	Aviation-grade aluminum alloy
Finish	Automotive-grade paint
Cooling	Sealed, fanless — near-silent operation
	Connectivity & Compatibility
Ports	Power, USB, throttle, rudder pedals, and more
Native Flightsticks	MH16 Flightstick, MHG Flightstick, MA3X Side Stick
Third-Party Support	Select grips via optional adapters (e.g., Warthog-compatible)
Active Shifter	MOZA Active Shifter Knob supported ($59 CAD)
Platform	PC only
Mounting	Desktop clamp (optional $85 CAD); universal rig mounting pattern
Compatible Sims	MSFS 2024/2020, X-Plane 12/11/10, DCS World, IL-2 Sturmovik, War Thunder, and others
In the Box	AB9 FFB Base, data cord, wrench, user manual

Tutorial Video

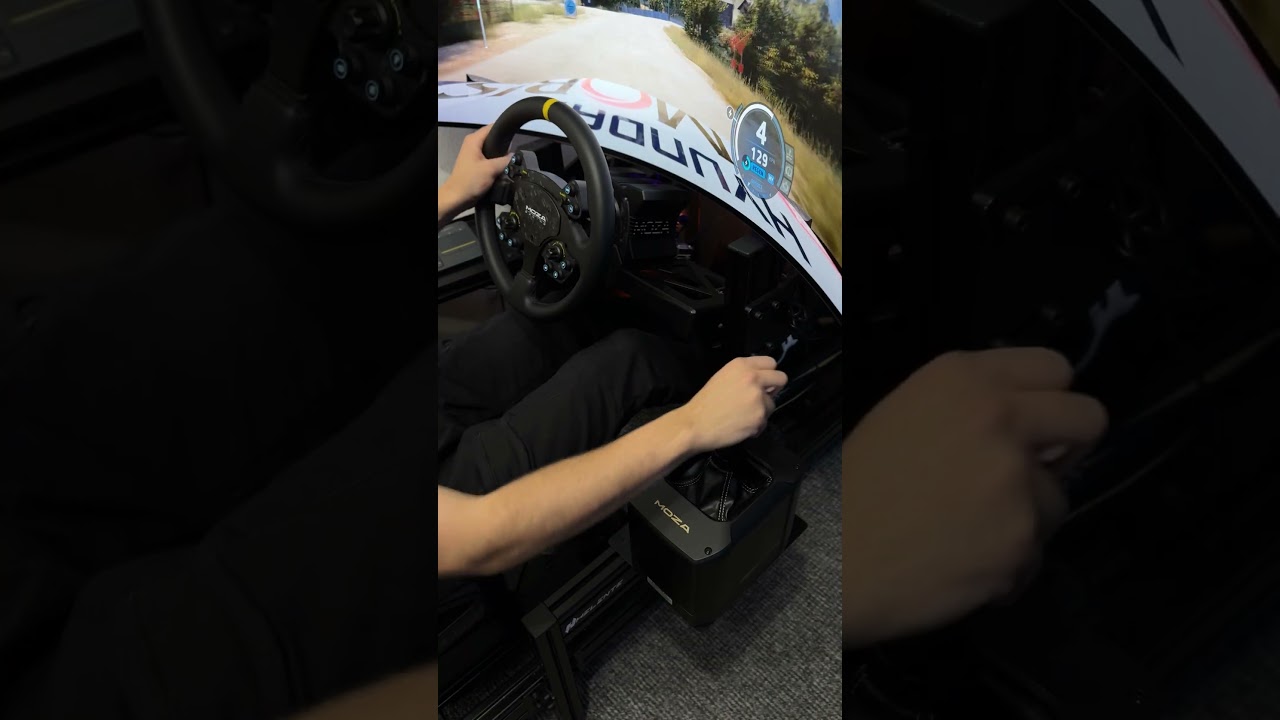

Did You Know the AB9 Can Do This?

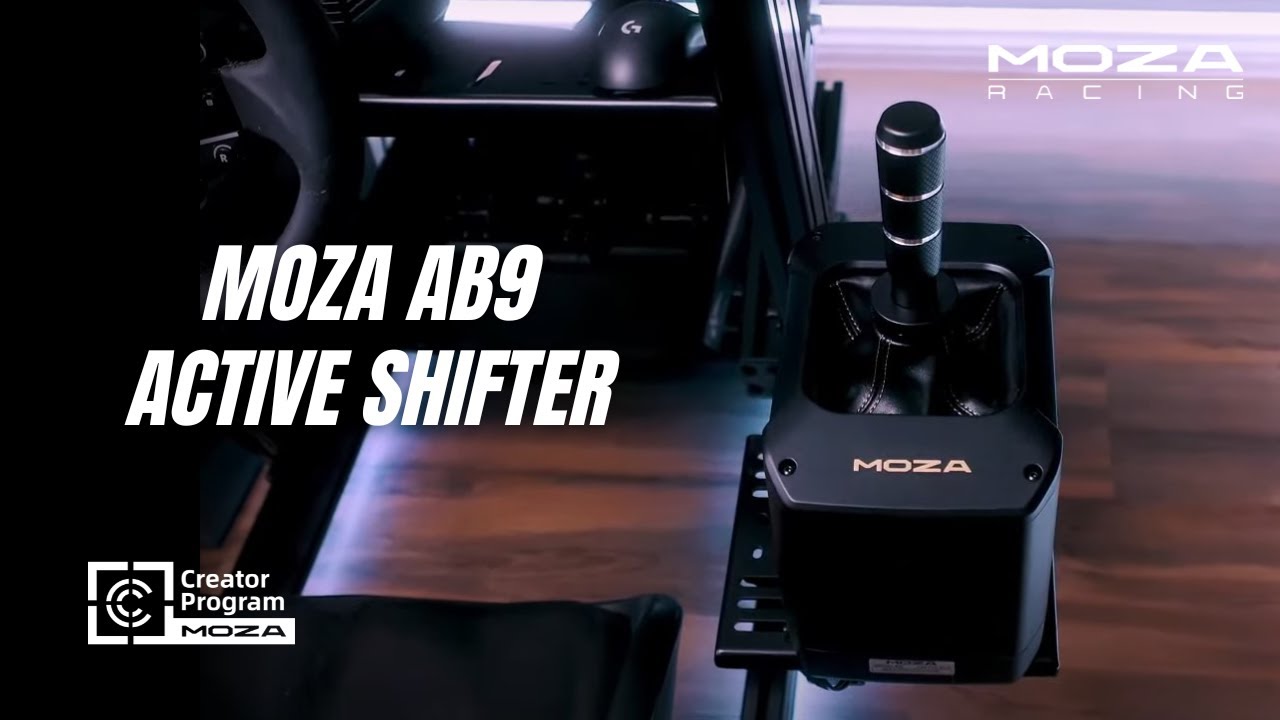

Active FFB Shifting: AB9 Explained

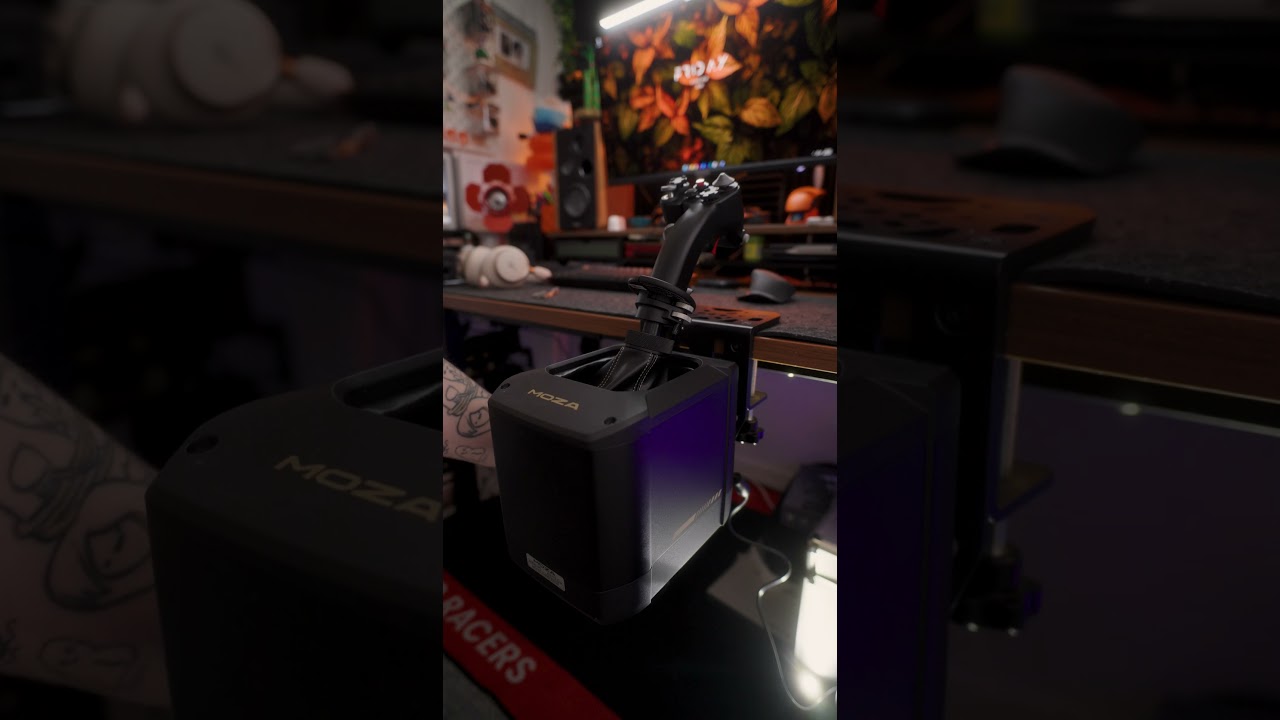

AB9 Base & MH16 Flightstick Installation

AB9 FFB Base & Active Shifter

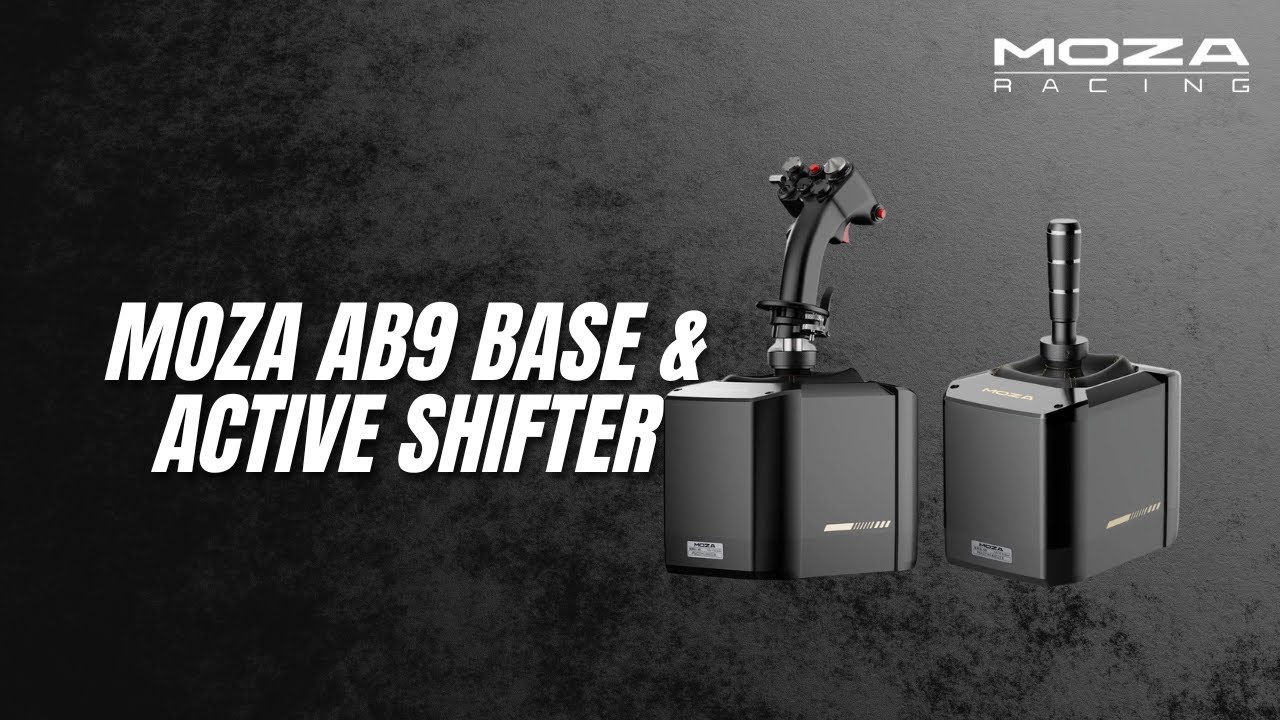

AB9 Base & Active Shifter Setup

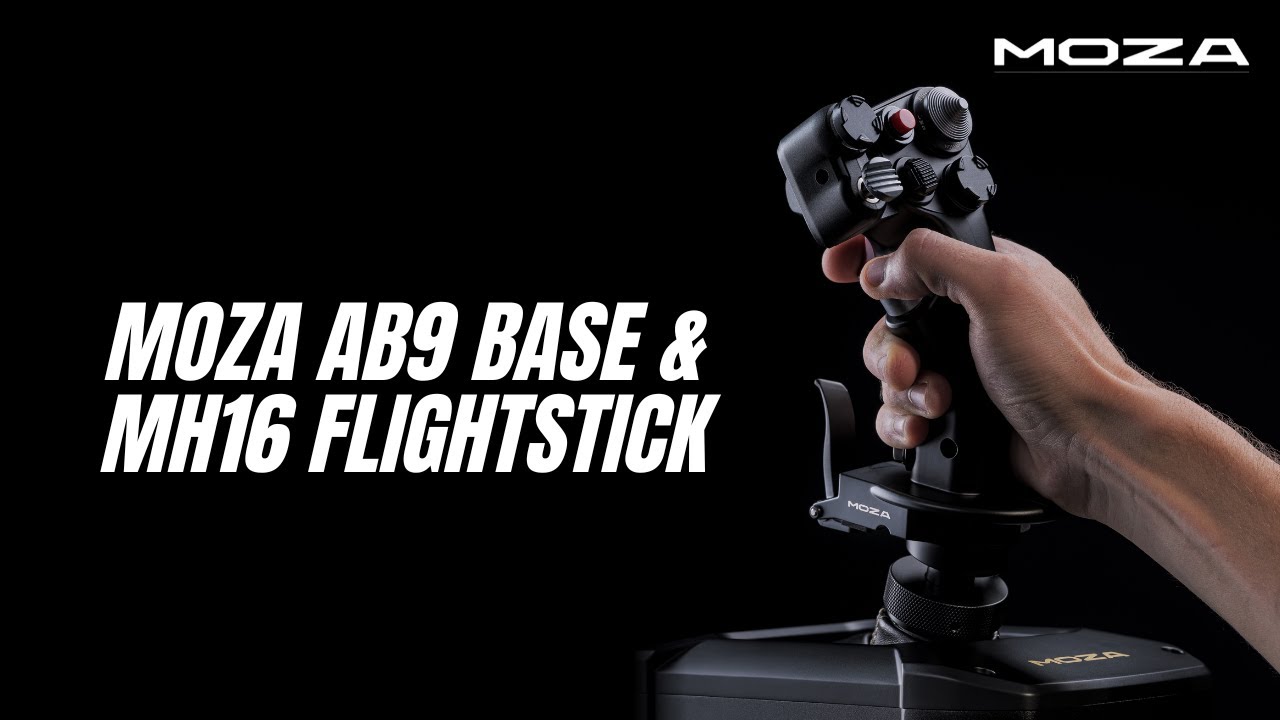

Assembling AB9 Base & MH16 Flightstick

FAQs

What is MCLS force feedback technology?

MCLS (MOZA Control Loading System) is MOZA's proprietary force feedback technology designed specifically for flight simulation. Powered by dual servo motors with segmented winding, it delivers ultra-low cogging torque and minimal torque ripple for smooth, realistic control forces across the full ±20° pitch range.

Which flightsticks are compatible with the AB9?

Native support includes the MOZA MH16 Flightstick, MOZA MHG Flightstick, and MOZA MA3X Side Stick. Select third-party grips (including Warthog-compatible models) are supported via optional adapters. MOZA Cockpit software allows manual flightstick selection and calibration.

What is the Active Shifter Knob?

The MOZA Active Shifter Knob ($59 CAD) is an optional add-on that provides gear-based force feedback effects through the AB9 base — simulating engine vibration, gear engagement, and other tactile feedback. It is fully supported and configurable in MOZA Cockpit.

How does the AB9 compare to the AB6?

The AB9 delivers 12 N·m of peak torque vs the AB6's 4.25 N·m, uses dual servo motors with MCLS technology, and features a fanless sealed design. The AB6 is a compact, gear-driven entry-level FFB base. Choose the AB9 if you prioritize maximum force feedback fidelity and expansion flexibility.

Is the AB9 loud during operation?

No. The AB9 uses a sealed, fanless design for near-silent operation. The dual servo motors and segmented winding technology minimize mechanical noise even under sustained 12 N·m output.

Can I use the AB9 on Xbox or PlayStation?

No. The AB9 is PC only. It does not support Xbox or PlayStation consoles.
