Product Overview

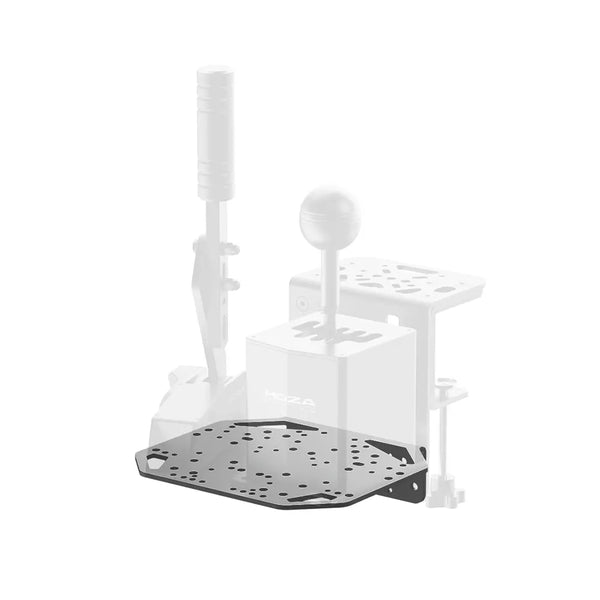

The MOZA Universal Mounting Plate is a versatile, ambidextrous mounting solution for shifters and handbrakes. Made from high-strength steel, it supports MOZA shifters and handbrakes as well as select third-party peripherals across desktop (with AB9 clamp), 40 Series aluminum profile rigs, and custom DIY frames. Three handbrake angle positions in 9° increments with 20 mm spacing let you dial in the perfect ergonomic layout for left- or right-hand drive.

200 × 220 × 55 mm | 1300 g | High-strength steel | Ambidextrous | 84–122 mm height range

Get Started


MOZA Pit House
Control software download
Mounting Dimensions
Compatibility layout diagram
Accessories
Compatible accessories

Specifications

Specification
Details
Dimensions
200 × 220 × 55 mm
Weight
1300 g
Material
High-strength steel
Mounting Height Range
84 mm – 122 mm (with AB9 clamp)
Handbrake Angle Adjustment
3 options, 9° increments, 20 mm spacing
Profile Rig Compatibility
40 Series aluminum profile systems
Desktop Mounting
Supported via MOZA Flight Base Table Clamp (AB9, sold separately)
Layout
Ambidextrous (left- and right-hand drive)
Compatibility
MOZA & select third-party shifters/handbrakes
In the Box
MOZA Universal Mounting Plate (×1)
