Product Overview

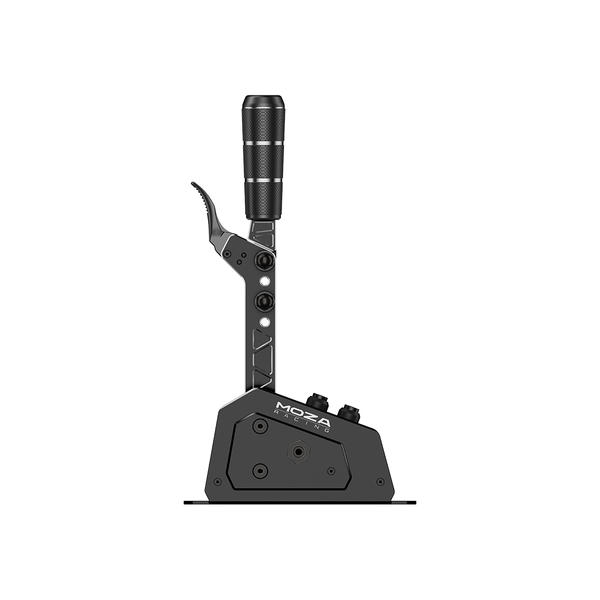

The MOZA SGP Sequential Shifter is an all-metal sequential gearbox featuring an aerospace-grade aluminum alloy housing, high-strength steel internal mechanism, and a non-contact Hall sensor for consistent, wear-free shifting. It offers an adjustable damper for customizable resistance, two backlit RGB mechanical buttons (8 colors, configurable in MOZA Pit House), and a 64 mm height adjustment range. The multi-functional handle supports forward or reverse mounting orientation.

Get Started

MOZA Pit House
RGB & button configuration

Accessories
Mounting plates & clamps

Product Page
Full details & purchase

Specifications

Specification	Details
Dimensions	320 × 182 × 52 mm
Housing Material	Aerospace-grade aluminum alloy + high-strength steel
Lever & Knob Material	Aerospace-grade aluminum alloy
Sensor	Non-contact Hall sensor
Damper	Adjustable resistance
Backlit Buttons	2 (mechanical, 8 RGB colors)
Height Adjustment	Up to 64 mm
Knob Thread	M12 × 1.5 (industry standard, aftermarket compatible)
Mounting	Forward or reverse orientation
Connection	USB direct to PC, or RJ11 to compatible MOZA wheelbase
In the Box	Sequential shifter, shift handle, USB-B to USB-A cable, RJ11 cable, M6 screws & washers, hex wrench, external hex wrench

FAQs

What's the difference between the HGP and SGP shifters?

The HGP is a 7+R H-pattern shifter with a patented downshift throttle blip system. The SGP is a sequential shifter (push forward / pull back) with an adjustable damper, RGB buttons, and height adjustment. Choose the HGP for traditional H-pattern shifting; choose the SGP for sequential racing disciplines like rally, drift, and touring cars.

Can I adjust the shifting resistance?

Yes. The SGP features an adjustable damper that lets you customize the shifting resistance to your preference — from light, rapid shifts to a heavier, more mechanical feel.

Are the buttons programmable?

Yes. Both backlit mechanical buttons are fully programmable in MOZA Pit House. You can assign functions like DRS, pit limiter, look left/right, or any keyboard mapping. RGB color (8 options) is also configured in Pit House.

Can I swap the shift knob?

Yes. The SGP uses an M12 × 1.5 thread pattern, an industry standard compatible with most aftermarket shift knobs.

How do I mount the SGP Shifter?

The SGP supports both forward and reverse mounting orientations. It mounts to aluminum profile rigs and cockpits. For desktop setups, the MOZA Universal Mounting Plate (sold separately) is required.
