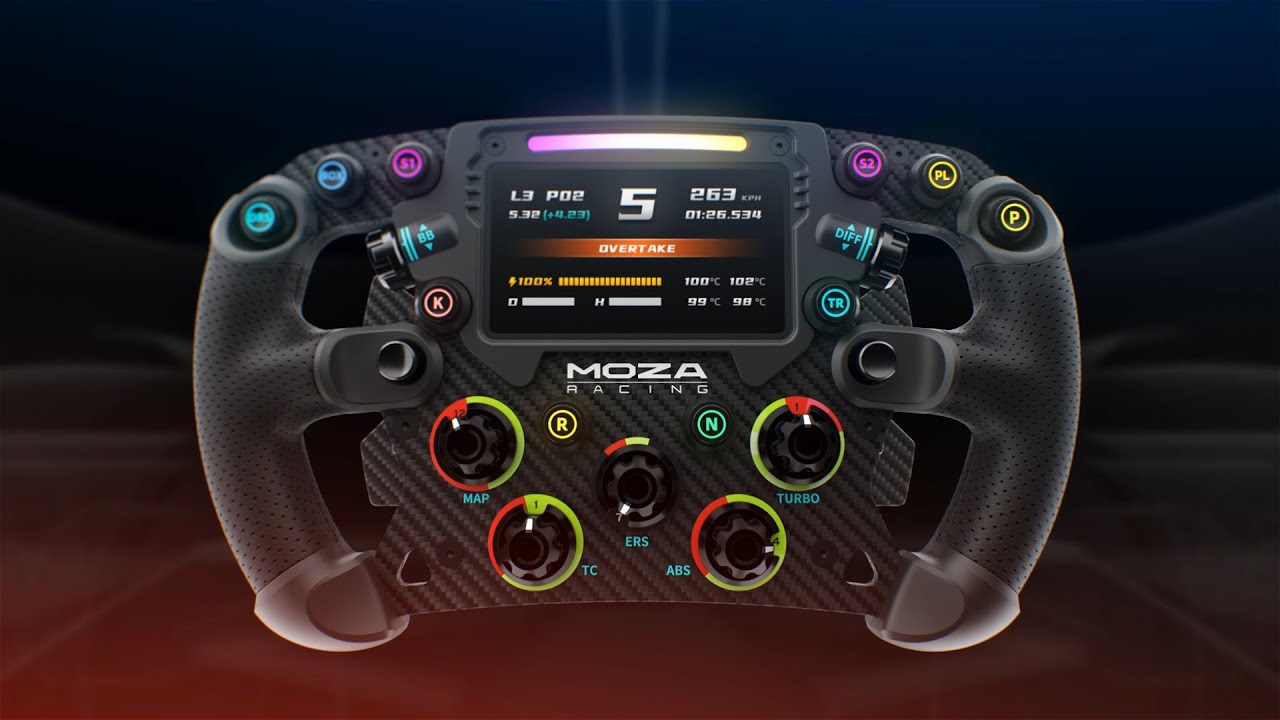

MOZA FSR Formula Steering Wheel
Get Started
 MOZA Pit House All-in-one control software |  MOZA Racing App Cloud-based mobile control |  User Manual Product features and guides |  Accessories Compatible accessories |
Post-Sales Support
 Contact Customer Support |  Get Technical Support Submit New Ticket |  Request Repair Service Contact customer support first |
Specifications
Specification | Details |
Size | 280mm |
Digital Dash Size | 4.3 Inches |
Digital Dash Resolution | 800*480 |
Grips | Perforated Leather |
Face Plate Material | 5mm-thick Toray Carbon Fiber |
Shifter Paddles Material | 3 mm-thick, Forged Carbon Fiber |
Back Plate Material | Aviation-grade Aluminum |
Magnetic Shifter Paddles | 2 |
Dual Clutch Paddles | 2 |
Luminous Mechanical Buttons | 10 |
Thumb Encoders (depressible) | 2 |
Rotary Encoders | 5 |
LED Lamp Beads | 10 |
Choice of Colors | 7 |
Intelligent Telemetry | Supported |
Fully Adjustable RPM LEDs through MOZA Pit House | Supported |
Release Method | MOZA Quick Release |
Communication Method | Wireless / USB (Requires the use of the MOZA universal HUB in order to connect via USB.) |
Paddle Sensor | Photoelectric Sensor |
Dual Clutch Paddle Mode | Combined Axis/Independent Axis/button |
Tutorial Video
 Introduction |  Unbox & Install |
Reviews
 by MkElite |  by SimRacingSetups |  by SimRacing604 |
FAQ
Q: The force feedback weakens or disappears suddenly.
A: Restart wheel base , MOZA Pit House and the game.
Q: The shift indicator doesn't match the engine speed.
A: Follow these steps:
1. Click "Configurate: in the game on the right side on the main page in MOZA Pit House.
2. Turn on the rev speed matching button on the steering wheel setting page.
Q: Insensitive shift paddle / responsive latency / irresponsive / stuck.
A: Click "Calibrate Paddles" on the Recovery and Reset page in Pit House and calibrate as instructed.
Q: The steering wheel is not successfully paired with the wheel base for a long time.
A: You can try the following methods:
1. Upgrade the base and steering wheel firmware to the latest version
2. The steering wheel access detection of MOZA Pit House is adjusted to continuous detection
3. Or the steering wheel access detection of MOZA Pit House remains as automatic detection, but a steering wheel automatic detection calibration is performed
Q: How to ensure that the steering wheel can be used normally / the meaning of the change of the steering wheel shift indicator.
A: 1. When the game is not in progress and the MOZA Pit House indicator switch mode has been set to follow the speed, the shift indicator of the steering wheel will continue to breathe purple light under normal circumstances, which means that the steering wheel can be used normally.
2. When the game is not in progress and the MOZA Pit House indicator switch mode has been set to follow the speed, if the steering wheel shift indicator continues to breathe, and the light is blue, it means that the steering wheel is in the upgrade mode at this time, and it needs to be in MOZA Pit House re-upgrades firmware
3. MOZA Pit House cannot check that the steering wheel is connected, and the shift indicator of the steering wheel is periodically moving left and right, which means that the steering wheel is trying to pair with the base. If the steering wheel is unsuccessfully paired with the base for a long time, see "Unsuccessful pairing of the steering wheel with the base for a long time"
Q: The steering wheel centers, but doesn't display as centered in MOZA Pit House.
A: See Wheel Base FAQs.
Q: The shifter paddle is insensitive.
A: See "The steering wheel is not successfully paired with the wheel base for a long time", if the problem still cannot be solved, please contact the customer service.
