Specifications

Specification	Details
Size	310mm
Back Plate Material	Aerospace-grade aluminum alloy
Face Plate Material	Carbon fiber reinforced composite
Grip Material	Microfiber leather
Display Screen	2.85-inch high-definition circular screen
Display UI	Fully customizable
Short-Travel Backlit Buttons	8
Backlit Buttons Colors	16.7 million colors
Rear Buttons	2
Aluminum Alloy Rotary Encoders	3
Aluminum Alloy Thumb Encoders	2
7-Way Switch	1
Universal Joystick	1
Shift Indicator Lights	10 top-mounted RPM indicator
Shift Indicator Lights Colors	16.7 million colors
Shift Paddles	Carbon fiber magnetic shift paddles
Dual Clutch Paddles	Hall sensor magnetic paddle with dual clutch
Intelligent Telemetry	Supported
Fully Adjustable RPM LEDs through MOZA Pit House	Supported
Release Method	All-aluminum quick release
Communication Methods	Wireless or via conductive slip ring
Compatibility	It is compatible with all MOZA wheelbases and works with 3rd party wheelbases via MOZA hub.

Tutorial Video

Vision GS Wheel Review

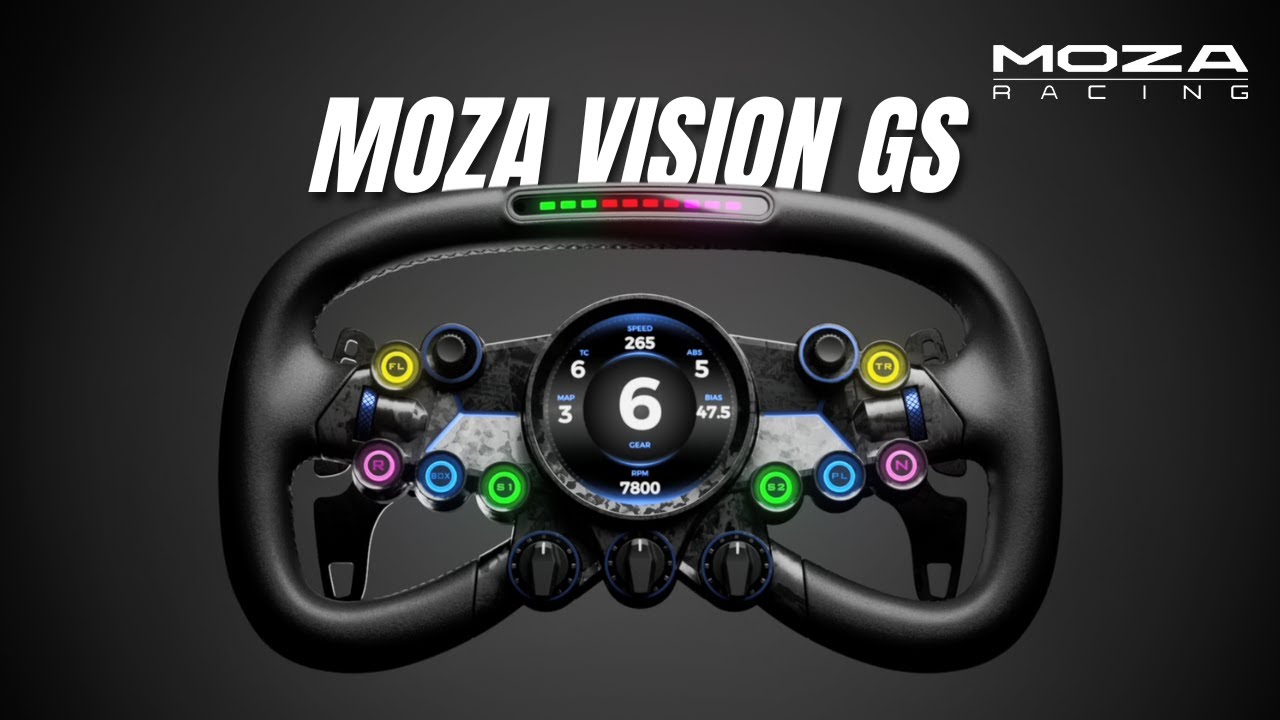

MOZA Vision GS Wheel

Introducing Vision GS Wheel

Vision GS — Unboxing & Setup

Vision GS Setup Guide

Top 10 Vision GS Features

Vision GS × R12 DD Base

Reviews

by amstudio

by SimRacing604

FAQs

The force feedback weakens or disappears suddenly.

Restart wheel base , MOZA Pit House and the game.

The shift indicator doesn't match the engine speed.

Follow these steps:
1. Click "Configurate: in the game on the right side on the main page in MOZA Pit House.
2. Turn on the rev speed matching button on the steering wheel setting page.

Insensitive shift paddle / responsive latency / irresponsive / stuck.

Click "Calibrate Paddles" on the Recovery and Reset page in Pit House and calibrate as instructed.

The steering wheel is not successfully paired with the wheel base for a long time.

You can try the following methods:
1. Upgrade the base and steering wheel firmware to the latest version
2. The steering wheel access detection of MOZA Pit House is adjusted to continuous detection
3. Or the steering wheel access detection of MOZA Pit House remains as automatic detection, but a steering wheel automatic detection calibration is performed

How to ensure that the steering wheel can be used normally / the meaning of the change of the steering wheel shift indicator.

1. When the game is not in progress and the MOZA Pit House indicator switch mode has been set to follow the speed, the shift indicator of the steering wheel will continue to breathe purple light under normal circumstances, which means that the steering wheel can be used normally.
2. When the game is not in progress and the MOZA Pit House indicator switch mode has been set to follow the speed, if the steering wheel shift indicator continues to breathe, and the light is blue, it means that the steering wheel is in the upgrade mode at this time, and it needs to be in MOZA Pit House re-upgrades firmware
3. MOZA Pit House cannot check that the steering wheel is connected, and the shift indicator of the steering wheel is periodically moving left and right, which means that the steering wheel is trying to pair with the base. If the steering wheel is unsuccessfully paired with the base for a long time, see "Unsuccessful pairing of the steering wheel with the base for a long time"

The steering wheel centers, but doesn't display as centered in MOZA Pit House.

See Wheel Base FAQs.

The shifter paddle is insensitive.

See "The steering wheel is not successfully paired with the wheel base for a long time", if the problem still cannot be solved, please contact the customer service.
