Steering Wheels

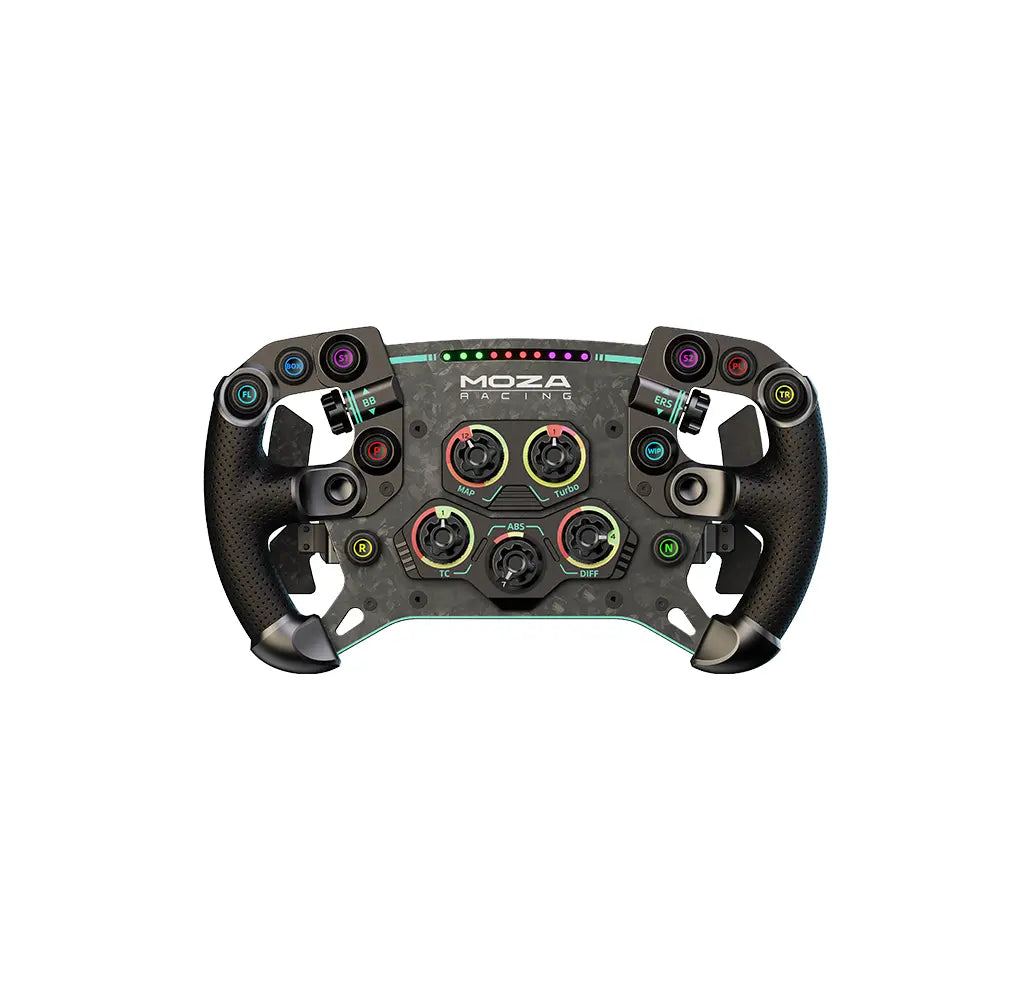

MOZA GS V2P Steering Wheel Support

Modified on Tue, 2 Jun at 1:35 PM

Get Started

MOZA Pit House
All-in-one control software

MOZA Racing App
Cloud-based mobile control

User Manual
Product features and guides

Accessories
Compatible accessories

Post-Sales Support

Contact Customer Support
support@mozaracing.com

Get Technical Support
Submit New Ticket

Request Repair Service
Contact customer support first

Specifications

Specification	Details
Grips	Perforated Microfiber Leather
Wheel Rim & Face Plate Material	5mm-thick Forged Carbon Fiber
Back Plate Material	Carbon Fiber Reinforced Composite
Shifter Paddle Material	3mm-thick Forged Carbon Fiber
Size	300mm Diameter Standard Racing Wheel
Magnetic Shifter Paddles	2
Clutch Paddles	2
Luminous Mechanical Buttons	10
Rotary Encoders	5
Thumb Encoders (depressible)	2
Joysticks	2
LED Lamp Beads RGB	10
Choice of Colors	8
Intelligent Telemetry	Yes
Fully Adjustable RPM LEDs through MOZA Pit House	Supported
Release Method	All-aluminum MOZA Quick Release
Paddle Sensor	Non-contact Hall Sensor
Dual Clutch Modes	Combined Axis / Independent Axis / Button

Tutorial Video

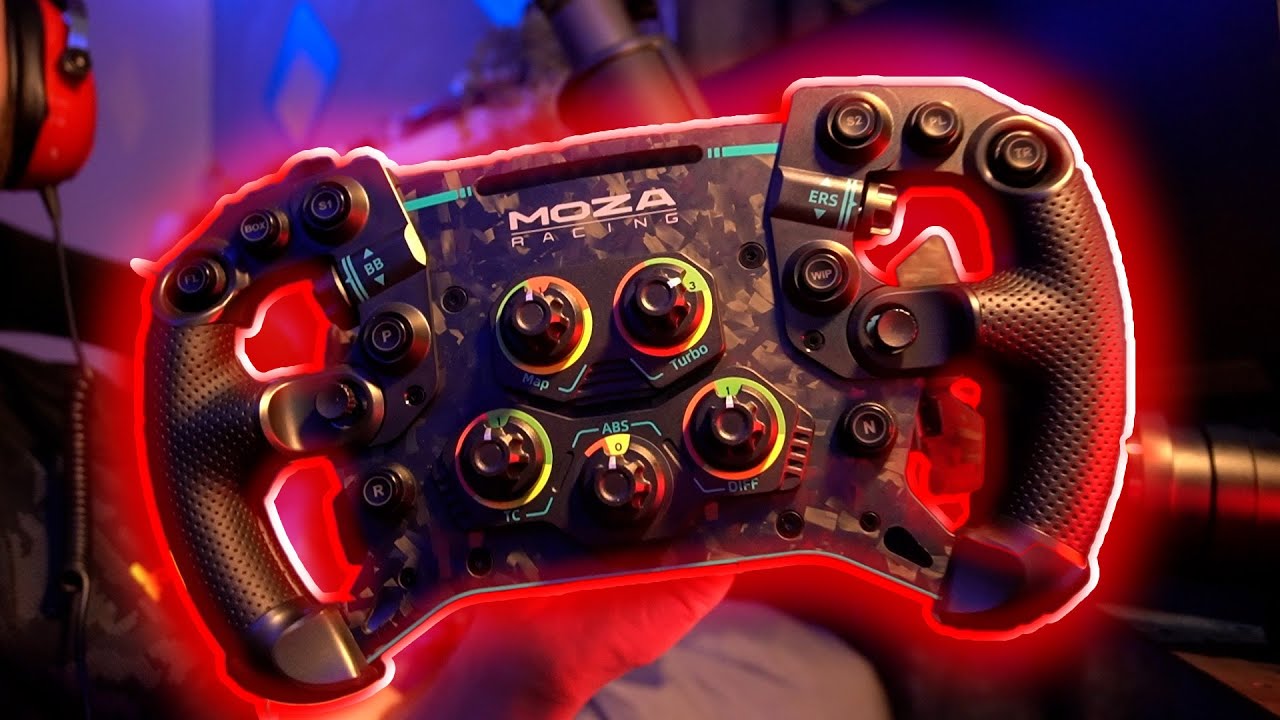

GS Steering Wheel — Feature Demonstration

Ready for Race — R9 & GS

GS Steering Wheel — Quick Setup

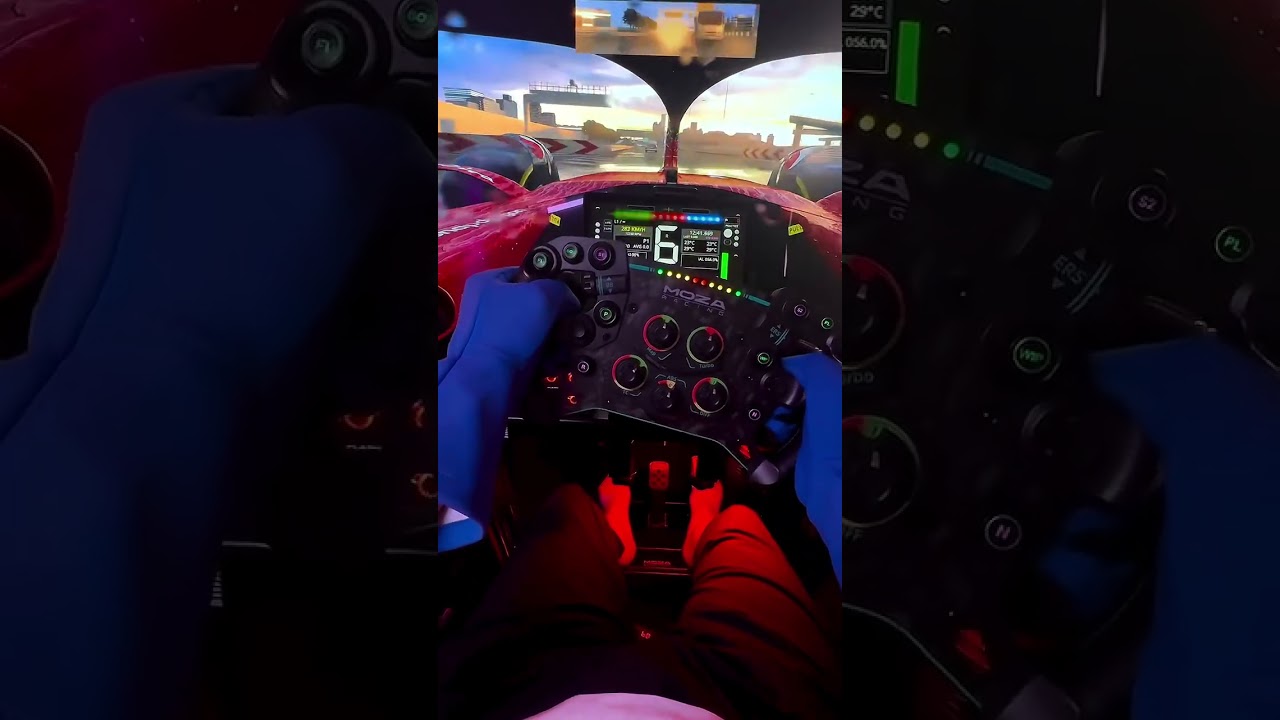

GS GT Wheel — Built for Control

Reviews

by JACKZER

FAQs

What kind of racing games is the GS V2P best suited for?

The GS V2P is ideal for GT-style racing and formula titles that demand precision input and advanced control — such as Assetto Corsa Competizione, iRacing, F1 series, and rFactor 2. With its 300mm size, dual clutch paddles, and full input layout, it's built for competitive simulation.

Is the GS V2P compatible with all MOZA bases?

The GS V2P is compatible with the MOZA direct-drive wheel bases that feature wired (conductive slip ring) support, including current-generation bases such as:

R3
R5
R9 V2 / R9 V3
R12 V2
R16 V2
R21 V2
R21 Ultra
R25 Ultra

The GS V2P is not compatible with older MOZA wireless bases including:

R9 V1
R16 V1
R21 V1

These models use the older wireless transmission system and do not support the GS V2P's wired conductive connection.

What are the paddles made of and how do they feel?

The GS V2P uses 3mm forged carbon fiber paddles with magnetic and photoelectric sensors for a crisp, tactile shift feel. The dual-clutch system supports both combined and independent axis modes — perfect for pro-level launches in F1 or iRacing.

What are the input options on the GS V2P?

The GS V2P offers a total of 28+ programmable inputs, including:

10 mechanical RGB buttons
5 rotary encoders
2 depressible thumb encoders
2 universal joysticks

This ensures complete control for complex car adjustments like brake bias, TC, engine maps, and menu navigation — all without taking your hands off the wheel.

Can I customize the RPM LED lights and button colors?

Yes. The GS V2P's 10 high-brightness RGB LEDs support 8 colors and can be fully configured in the MOZA Pit House software. You can adjust shift light timing, display modes, and button backlight colors.
