Q: Should the mBooster Active Pedal be connected to the base or PC? Does it require external power?
A:

  • Yes, it requires external power.
  • For MOZA bases: If your MOZA base has an RJ45 pedal port, connect the pedal directly to the base.
  • For third-party bases: Connect the pedal to the PC via USB.






Q: What type of pedal is the mBooster Active Pedal? Can it work with third-party pedals?
A:

  • The mBooster Active Pedal can function as throttle, brake, or clutch.

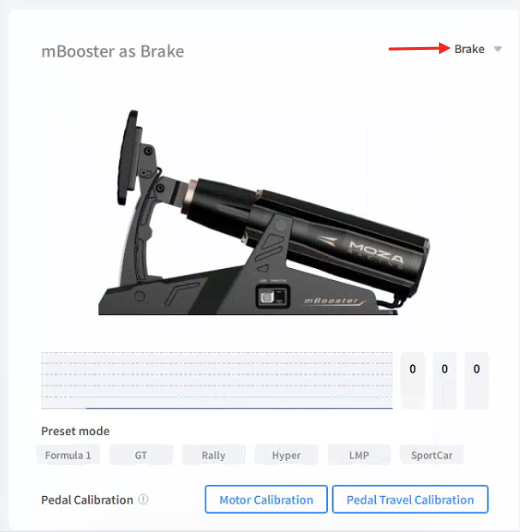

  • To assign its function:
    1. Open Pit House > Pedal Settings.
    2. Select "mBooster Active Pedal" and choose your desired pedal type.




Q: How do I switch between throttle, brake, and clutch modes?
A:

  • Open Pit House > Pedal Settings > mBooster Active Pedal and select your preferred function.

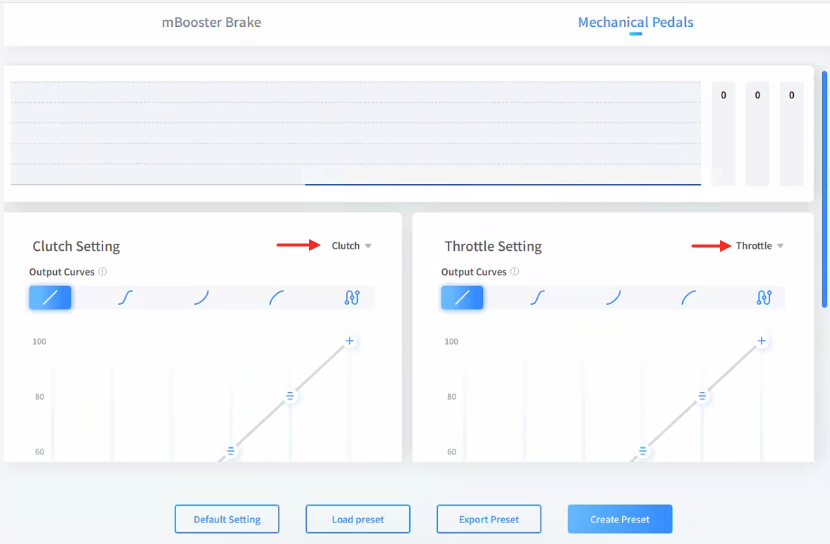

  • When paired with SR-P/CRP(2) mechanical pedals:
    • Switch to the "Mechanical Pedals" tab.
    • Follow the diagram to adjust pedal assignments.

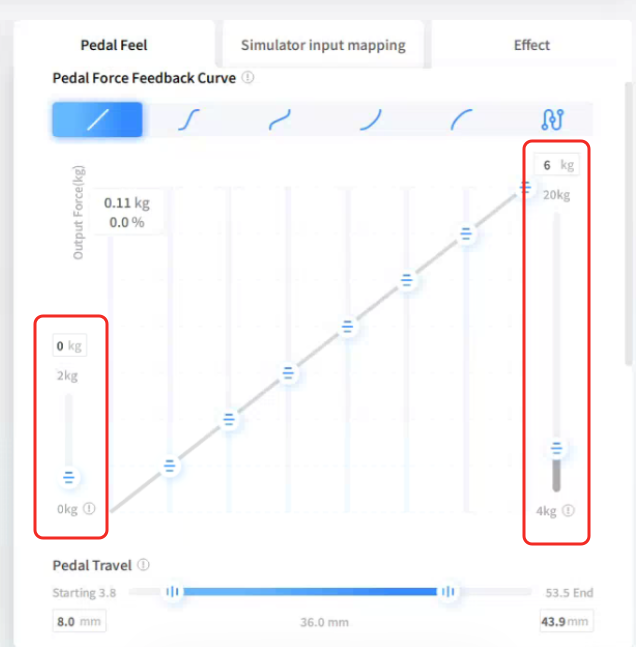

Q: The mBooster Active Pedal feels too stiff. How can I make it lighter?
A: Adjust the sliders in MOZA Pit House:

  • Starting Force (Left Slider): Minimum pressure to initiate movement.
  • Ending Force (Right Slider): Pressure required for full travel.
  • Note: The ending force must be higher than the starting force. Lower both values for a lighter feel.




Q: Why is there no vibration/force feedback?
A:

  • Enabling the force feedback effect requires configuration via the MOZA Pit House software.
  • Supported games: AC, ACC, F1, iRacing, rFactor 2, and others that support telemetry in MOZA Pit House.
  • Ensure game telemetry is configured in MOZA Pit House before launching the game.

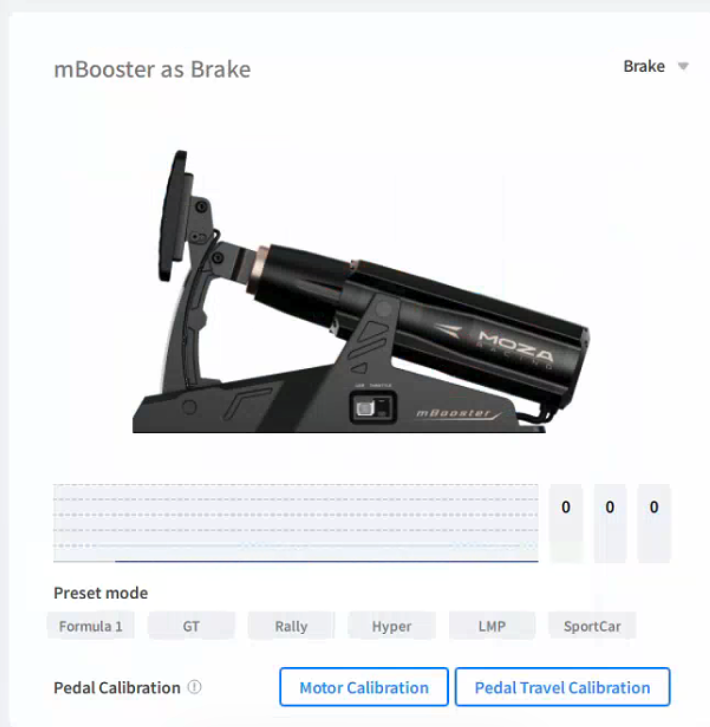

Q: Why isn’t my pedal reaching 100% input?
A:

  1. Check the pedal calibration curve in Pit House.
  2. Recalibrate the pedal if travel and input are inconsistent.
  3. Do not press the pedal during calibration; the process is automatic and takes about 2 minutes.



Q: Why isn’t my mBooster Active Pedal recognized in Pit House?
A: The mBooster Active Pedal requires external power—use the included power adapter and connect it to the pedal’s 6-pin power port.

  • MOZA base (with RJ45 port): Use an RJ45 cable to connect the pedal to the base’s PEDAL port.
  • Third-party base/pedal: Connect the pedal to the PC via USB. Try a different USB port if unrecognized.






Q: Can mBooster Active Pedal be inverted?
A: Yes, using the official inversion kit (sold separately).




Q: What sensors does the mBooster Active Pedal use?

A: It uses Dual 200kg load cell sensors and a 15-bit angle sensor.




Q: How do I install the mBooster Active Pedal? How many mBooster active pedals can be connected/used together?


A:

  • Up to 3 mBooster active pedals can be connected via RJ11 cables.
  • Connection methods:
    • PC (USB): The middle pedal must connect to the PC.
    • MOZA Base (RJ45): Use an RJ45 cable to the base.
  • Base Plate compatibility:
    • mBooster Base Plate: Fits up to 3 mBooster active pedals (excl. CRP2).

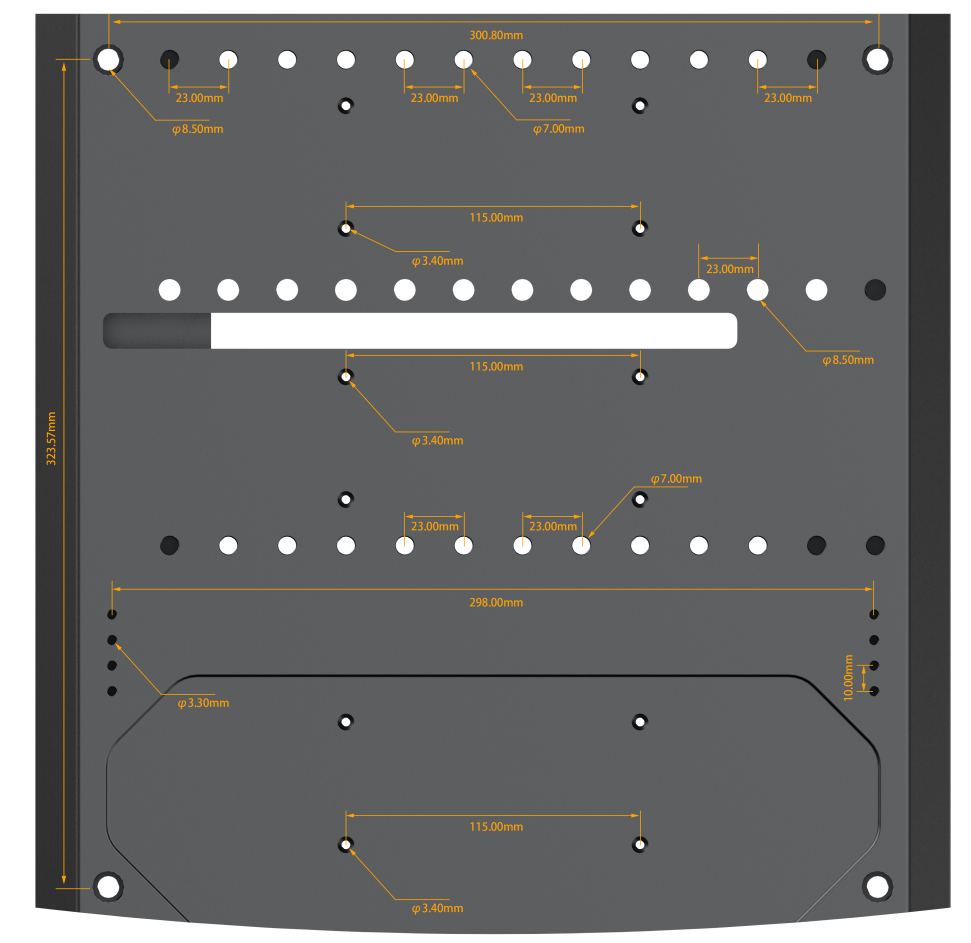

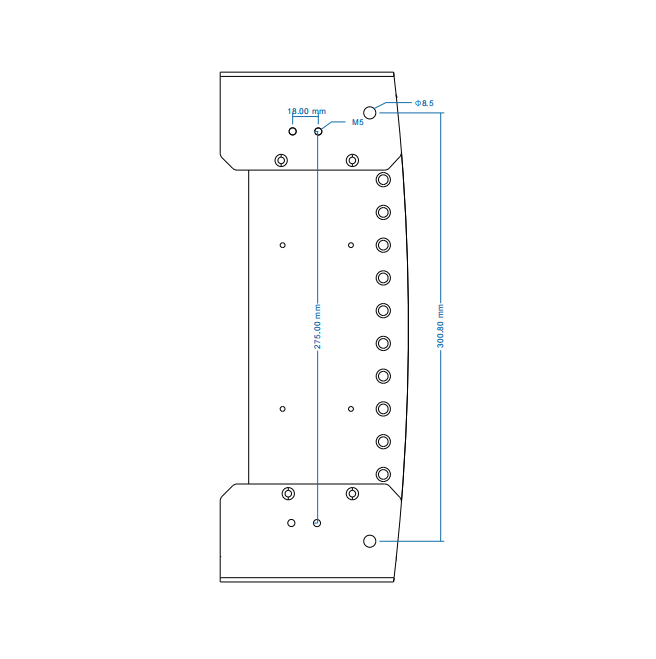

mBooster Base Plate Dimensions:

(Figure 1)

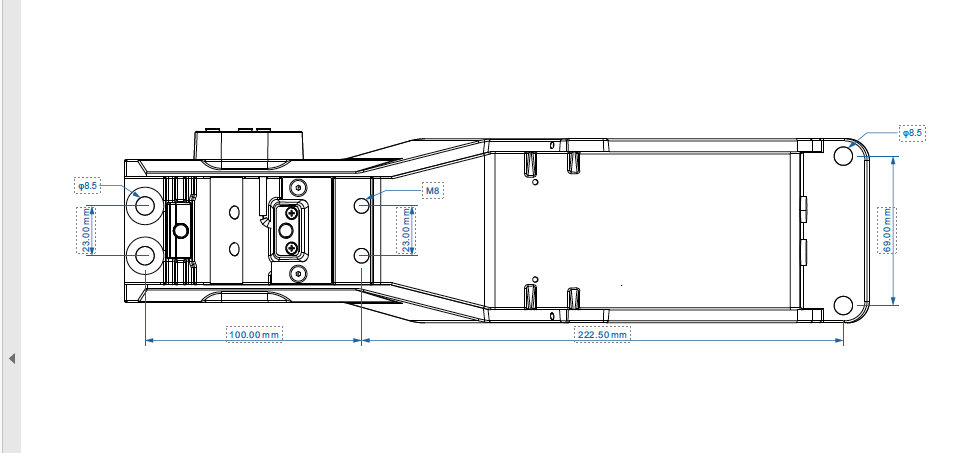

mBooster Active Pedal Hole Pattern:

(Figure 2)

  • CRP2 Base Plate: Fits up to 2 mBooster active pedals + 1 CRP2 mechanical pedal (optional).

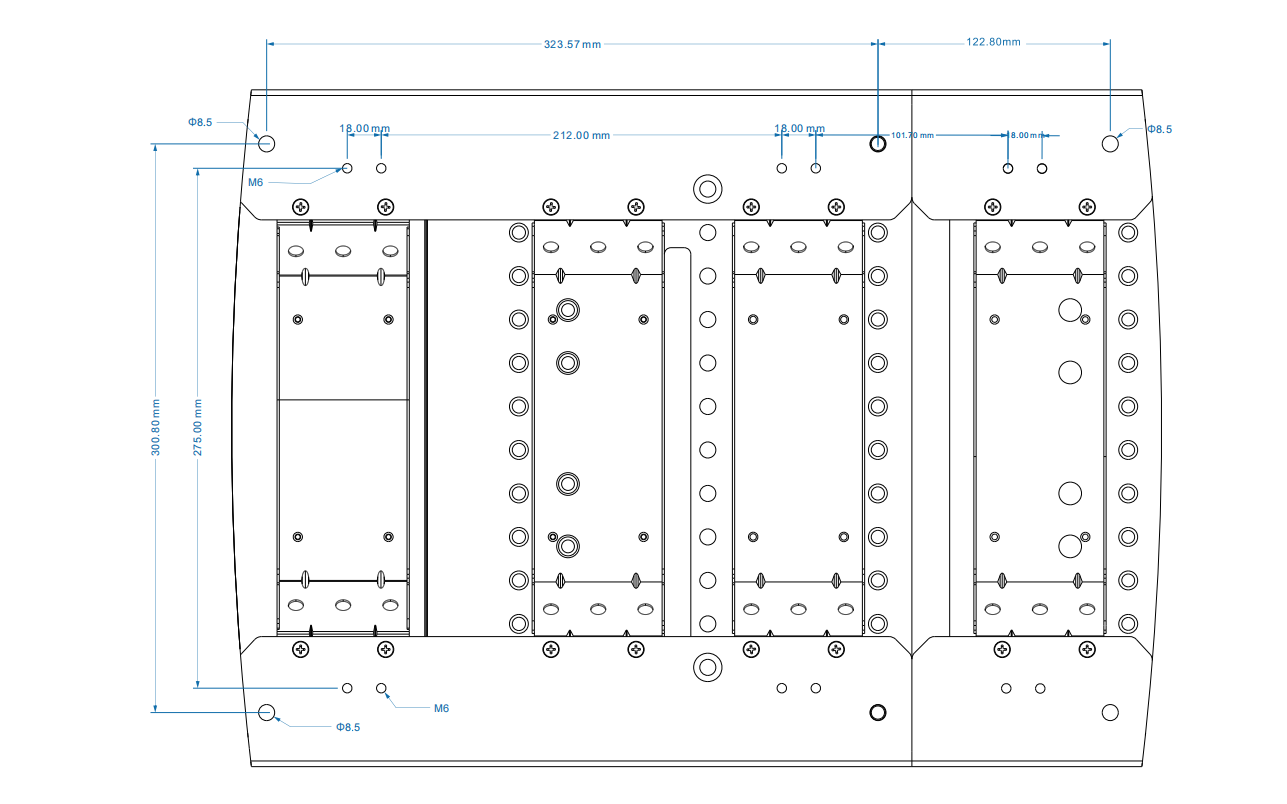

CRP2 Base Plate Dimensions and Hole Pattern:

(Figure 3)


*For CRP2 users: We recommend the mBooster Base Extension Plate for added safety, as the length of the mBooster Active Pedal exceeds the holes on the CRP2 base plate.



mBooster Base Extension Plate Hole Pattern:

(Figure 4)

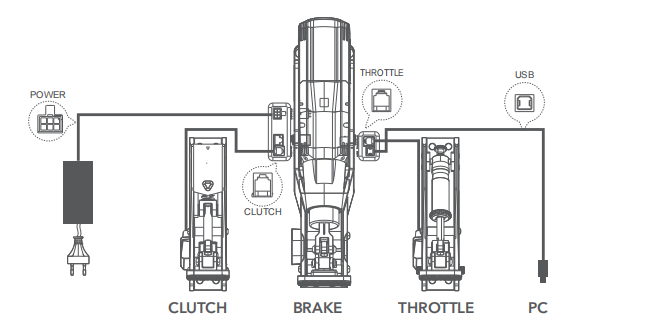

Signal Connection Details:

One mBooster Active Pedal with CRP2 Pedal(s)

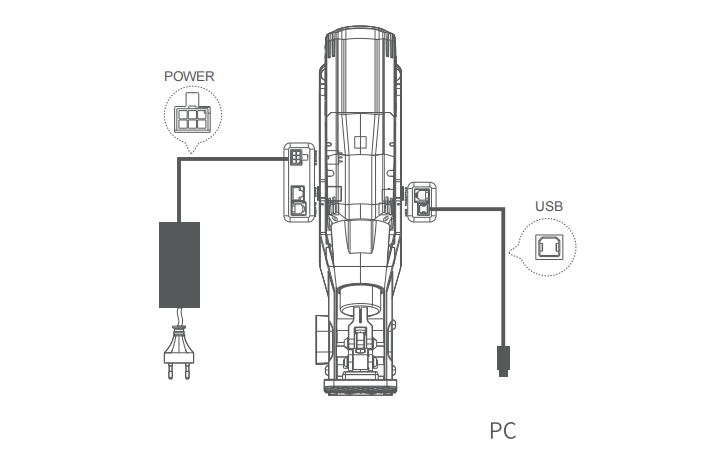

mBooster Active Pedal with third-party pedals

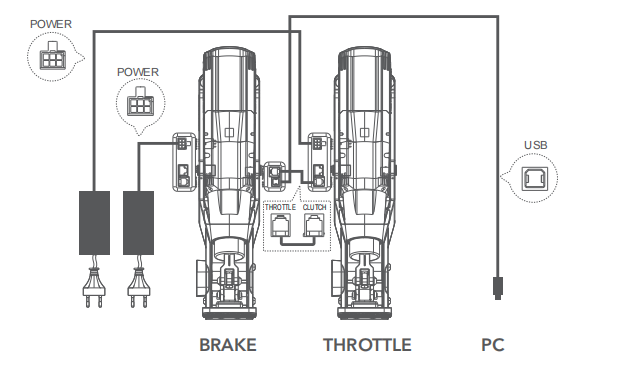

Dual Pedal Setup (2 mBooster active pedals)

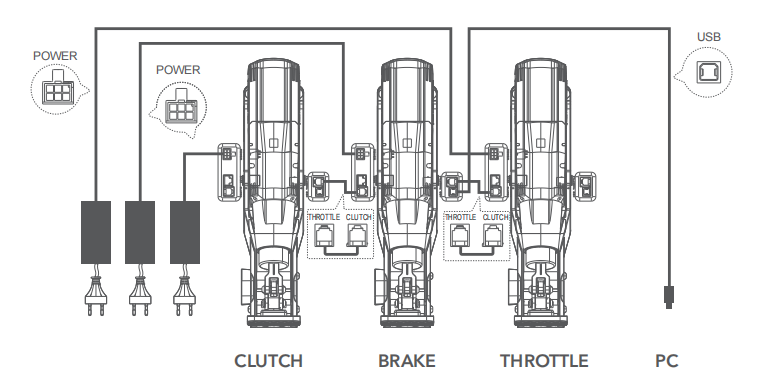

Triple Pedal Setup (3 mBooster active pedals)



Q: What is the mBooster Active Pedal’s travel range?
A:

  • Pedal Travel Adjustment Range: 0–25°
  • Pedal Angle Adjustment Range: 0–15°
  • Total Travel: 59.5mm
  • Max Adjustable Travel: 39.5mm
  • Software-adjustable travel (varies by pedal function):
    • Throttle: 3.8mm–49.7mm
    • Brake: 17.6mm–49.7mm
    • Clutch: 3.8mm-49.7mm


Q: Can I customize the force feedback curve? (e.g., stiff start, soft mid-travel, firm end)
A:

  • Yes! The force feedback curve is fully customizable.
  • Adjust it in Pit House > mBooster Active Pedal Settings to match your preference.



Q: When using mBooster Active Pedal with mechanical pedals (SR-P/CRP/CRP2), why does the mechanical pedal axis output curve show 100% by default?

A: SR-P and CRP2 pedals have different magnet placements, so the software can’t auto-detect them.

  • Solution: Recalibrate the mechanical pedal.


Q: After firmware upgrade from v1.2.4.10 to v1.2.4.13+, the motor overheats and loses FFB. What should I do?

A: Recalibrate the motor after upgrading from v1.2.4.10.
